Universal Aluminum Mounting Hub for 5mm Shaft Pair
SKU : UAMHf5mmSP
| Price |
348.00 ฿ |
| Quantity to buy | |
| Total | 348.00 ฿ |
Do not have enough stock
Out of stock
These universal mounting hubs are designed to work with most 5 mm shafts, including round shafts such as those on our stepper motors and “D” shafts. Each hub has four mounting holes for 4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. 4-40 hex set screws (one included for each hub) allow secure coupling of shaft to hub. A 0.05" hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws.

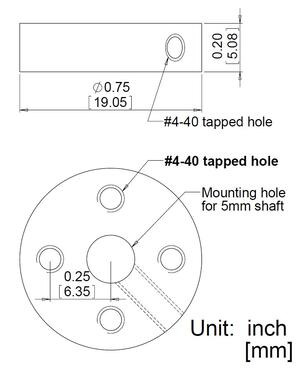

Mechanical drawing for the Pololu universal aluminum mounting hub for 5 mm shaft.

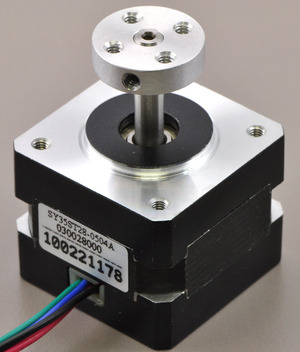

5mm Pololu universal aluminum mounting hub on a stepper motor with a 5mm output shaft.
Dimensions
Shaft diameter:5 mm
